Coolers

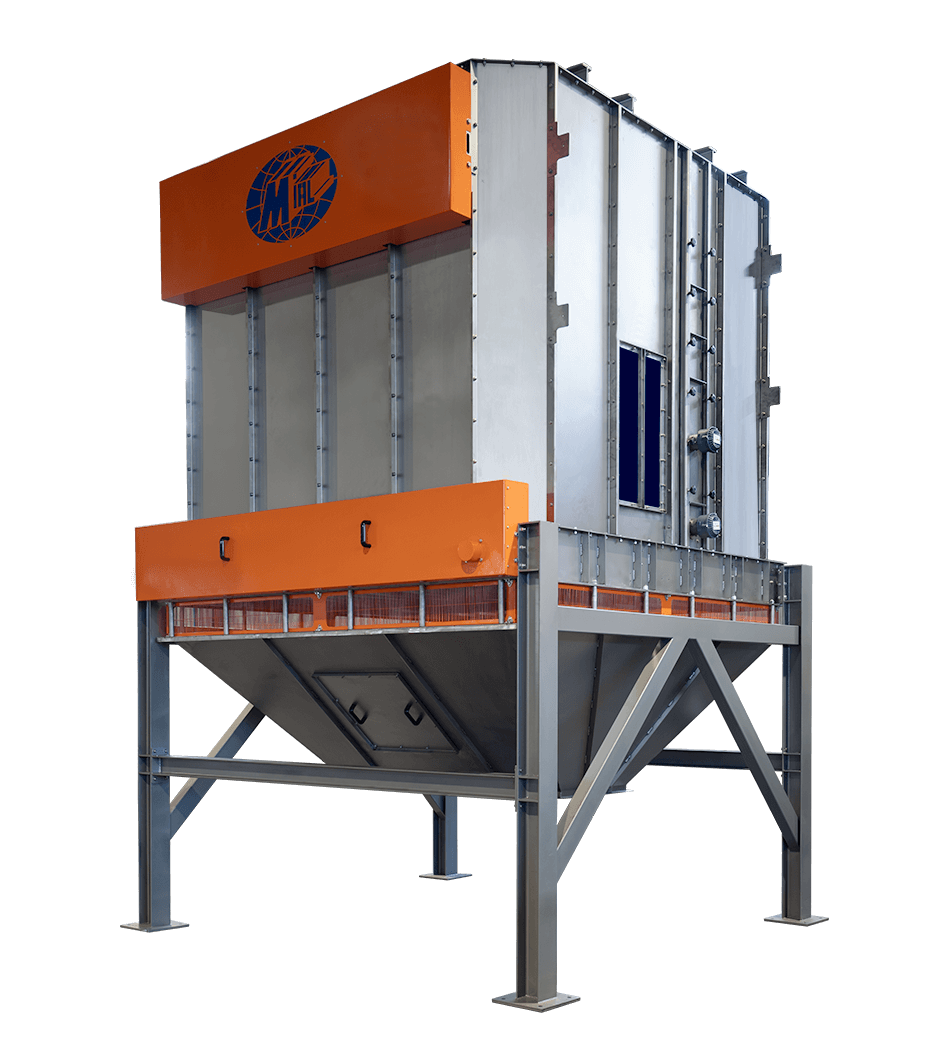

Counter-flow cooler for pellet with intermediate surface

The Counter-flow cooler with intermediate surface is used to cool the pellets after dicing or adding fat to make it available for the successive processing phases, optimising the times/cycle.

Up to 30 Ton/h for speed

Counter-flow cooler for pellet with intermediate surface 2

The Counter-flow cooler with intermediate surface is used to cool the pellets exiting the dicer press or extruded products after coating the dry feed.

The product to be handled is loaded into the cooler, and fresh air, taken from the external environment, is passed through a screen. On passing through the product, it guarantees the temperature is lowered; the presence of the intermediate surface greatly lowers cycle times.

The parts in contact are in AISI304 stainless steel so as to ensure long duration over time.

The many possibilities of adjustment mean that the Counter-flow cooler can be used for all needs, thus greatly reducing production "down times".

The limited routine and extraordinary maintenance is greatly facilitated thanks to the careful design of all moving parts.

Request information

Dimension Up to 2,800 x 2,800 mm

Counter-flow cooler for pellet with intermediate surface 3

FEATURES AND BENEFITS

There are many reasons to choose our products

01 High level of Pellet cooling.
02 AISI304 stainless steel structure to guarantee long duration over time.
03 Levels adjustment possible.
04 Economic use since fresh air is withdrawn from the external environment without conditioning elements.
05 Uniform distribution of the product inside, thanks to a motorised or fixed rotating plate.
06 Double Inspection Door with transparent Plexiglass window fitted with safety micro-switch.
07 Dosing of product inside the Cooler with rotary valve with body entirely in AISI304 stainless steel.
08 Use of off-the-shelf components of the main Italian and European brands.
09 Limited maintenance.
10 Can be completed with software and dedicated control board.

DIFFERENT OPTIONS

FOR A PERFECT SOLUTION

Support Structure

Suction unit with cyclone or filter

Air fitting piping

Crumbler for breakage of pellets for feed for the poultry sector

Screen for final cleaning of the Pellets

Electric control board

Machine management software

Loading conveyors

Unloading conveyors

Additional doors for viewing the product inside

AISI304 stainless steel support structure

Customisations

ATEX version
